Corrugated Box Digital Knife Cutting Machine

High precison high speed for cutting corrugated cardboard, honeycomb cardboard, gray cardboard, cardboard, paperboard, PVC, EPE EVA Foam, rubber etc.

Inquire Now

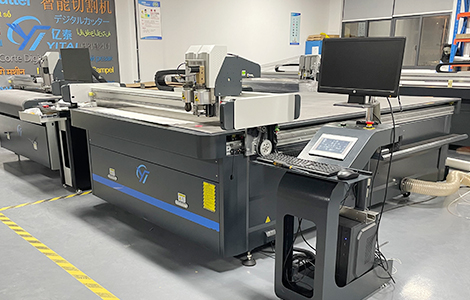

Corrugated Cardboard Board CNC Cutting Machine

digital cutter (50).jpg


digital cutter (6).jpg

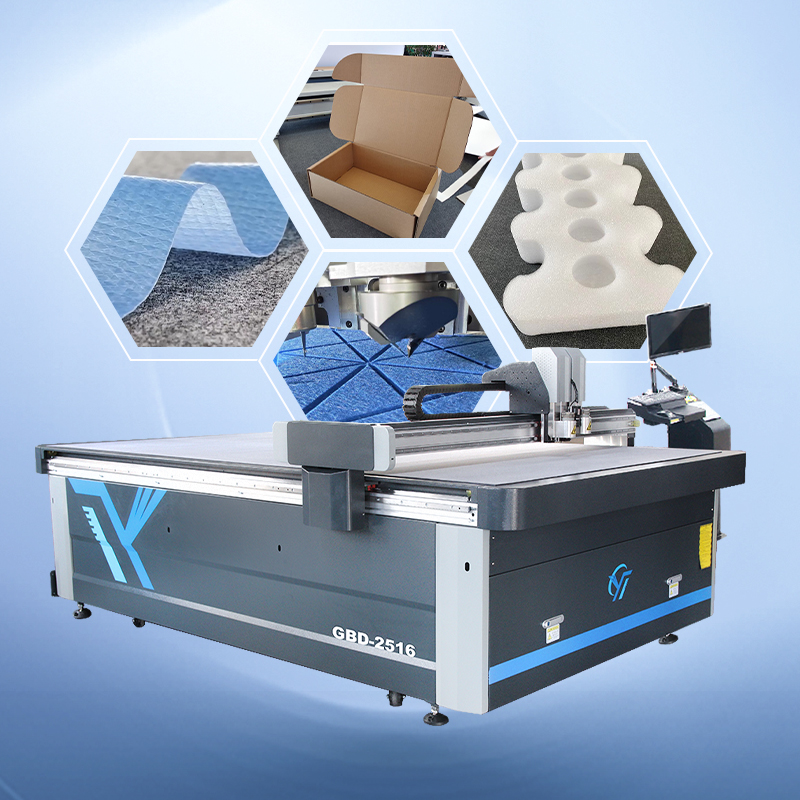

YITAI GBD2156 oscillating knife cutting machine is mainly used for cutting corrugated cardboard, honeycomb cardboard, gray cardboard, cardboard, paperboard, PVC, EPE EVA Foam, rubber etc. It can make cartons, packaging boxes, handicrafts, toys, and so on.

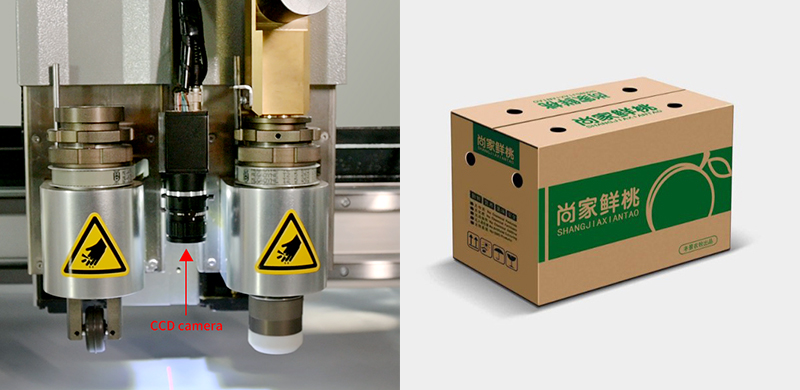

It is equipped with cutting tool, creasing tool, V cut tool, and CCD camera registration system for precise cutting. The cutting tool can cut the cardboard. Creasing wheel tool can press folding lines on cardboard. V grooves can be cut on thick cardboard. The CCD camera can realize tracing edge cutting and position cutting of printed cartons. Only CAD drawings are needed to make cartons, booths, models, cardboard toys, etc.


Custom From Worldwide



Exhibition



Advantages of oscillating knife cutting machine

in cutting corrugated cardboard board

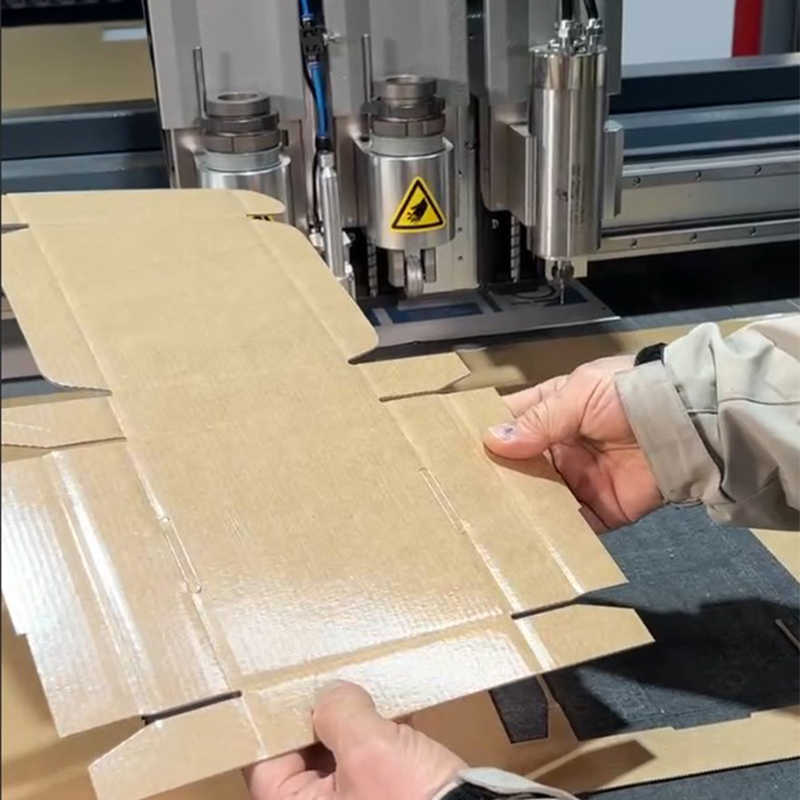

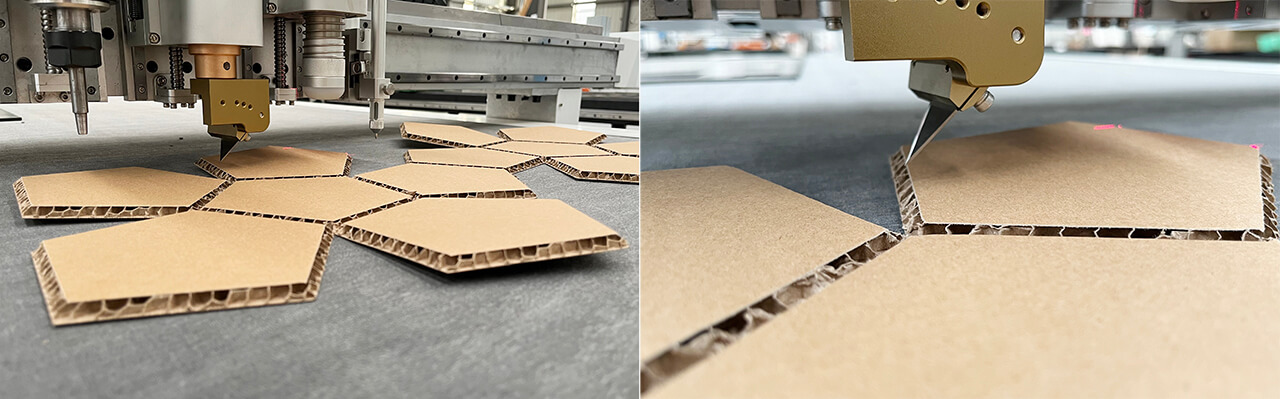

The cardboard cutting machine uses a computer-controlled system that precisely cuts through the carton material using oscillating knives. The creasing wheel, on the other hand, creates precise indentations in the carton material along the fold lines, enabling easy and accurate folding of the box.


Here are some key advantages of using a cardboard CNC cutting machine with a creasing wheel for making carton boxes:


1. High Precision and Accuracy—Fully automatic cutting with computer: high precision up to 0.1mm , the computer-controlled system ensures precise and accurate cutting, resulting in clean and neat the edges for the carton boxes. The creasing wheel also guarantees consistent and well-defined creases, ensuring the box folds neatly.


2. Lower Cost—No dies required: The digital control system allows for quick design changes and adjustments. No dies required, so it can save more costs and more shorter lead time (save 1-3 days for die making), Only CAD drawings are needed to make various cartons, booths, models, cardboard arts, etc. leading to improved production efficiency.


3. Multifunction cutting materials: it can handle various types of carton materials, including corrugated boards, folding cartons, and foam boards. This versatility allows for the production of a wide range of carton box designs and styles.


4. Cardboard Customization: with multifunction cutting tools, Our corrugated cardboard cutting machine can quickly cut cartons of different sizes and shapes, and also cut various thicknesses of materials. This versatility makes it suitable for small batch, multi-style order cutting, sample cutting in a wide range of industries.

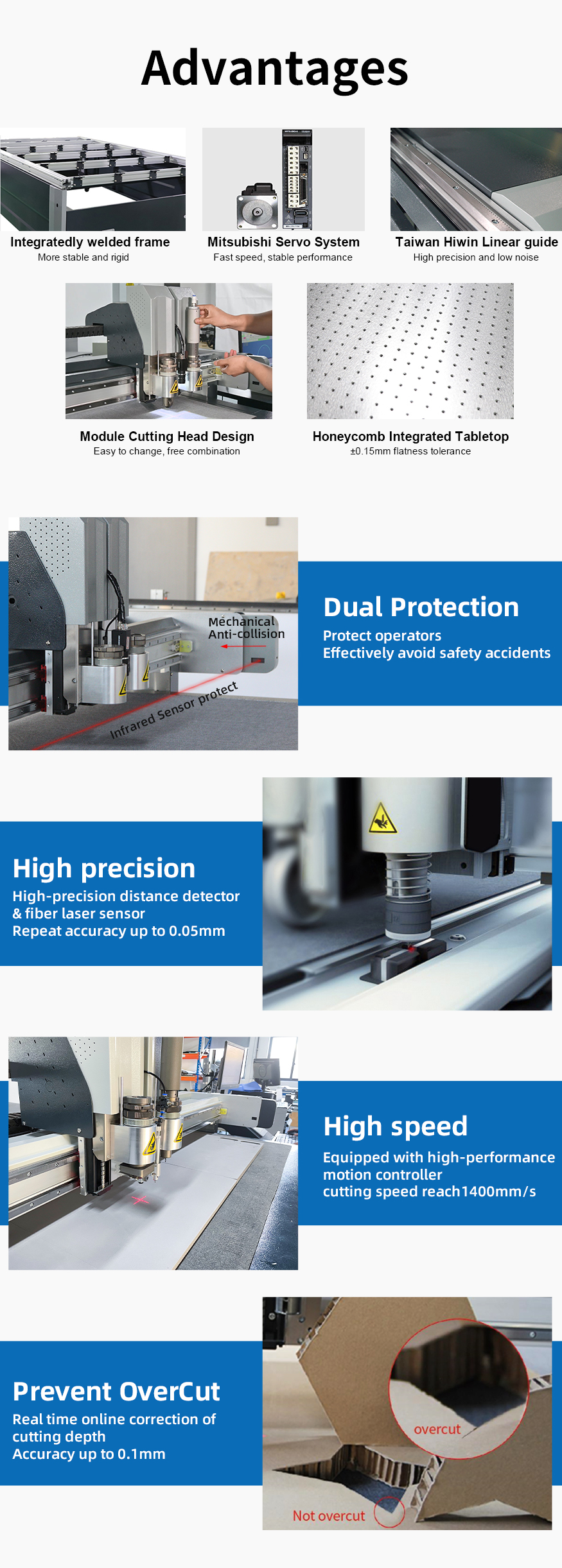

Why choose Yitai oscillating knife cutting machine

For cutting corrugated cardboard board



  1.  YITAI cardboard cutting machine uses integrated welding frame, the weight of the whole machine is more than 1.5 tons. Good stability, not easy to deform after long term use.


  2. Adopts Japan Mitsubishi servo motor drive control system.Every machine is equipped with six servo motors to make more stable and precise cutting effect,Stable performance, high precision, low failure rate and good high speed performance.


  3. Taiwan Hiwin gear rack transmission, compared with belt transmission, large loading capacity, high accuracy, fast speed, long service life.


  4. Modularized head design makes tool replacement easily and quickly. Such as when you cut cardboard, you can use the oscillating knife while cutting thick honeycomb board, you can change to pneumatic knife.


  5. Equipped with HD CCD camera, it could achieve the precise auto-positioning of all materials and the automatic registering, ensure precise cutting.


  6. Material thickness automatic recognition, material thickness will be automatically detected without manual measurement, then it will be recorded into the software.


  7. YITAI oscillating knife cutting machines can prevent over-cutting at inner angle, maximally reverting graphic outline and achieving perfect cutting effect.

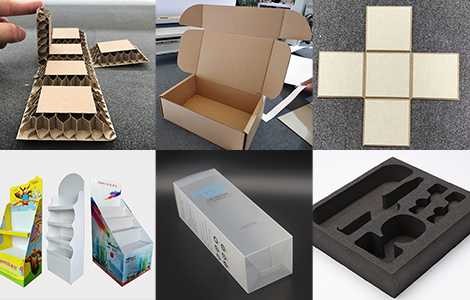

Wide Range of Applications

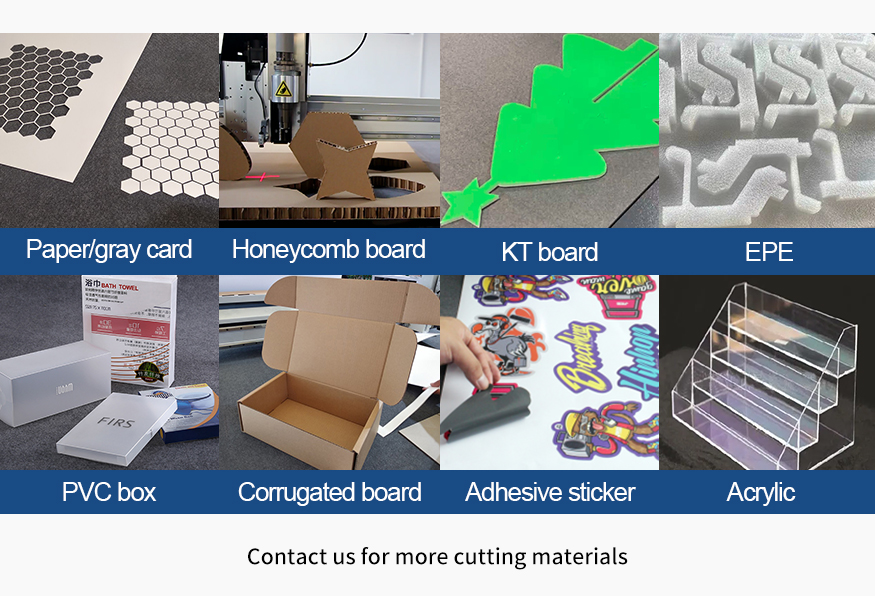

1. Cutting function: carton cutting machine can cut different workpieces such as corrugated paper, cardboard, offset paper, greyboard, rubber, honeycomb board, PP, PE, PVC, gasket, leather, carpet, textile, fabric, and car mat.

2. Creasing function: carton box cutting machine can fold corrugated paper, card paper, and offset board into perfect folding lines.

3.The function of dotted line: digital die cutter is used to fold them after half cutting corrugated paper and grey card paper, and to cut dotted lines.

4.Draw function with a marker pen: cardboard digital cutter can write text on corrugated board, foam, PVC, adhesive vinyl, leather, rubber, fabrics, high intensity reflective films, paper, cardboard, etc.

5.Punching function: carton box die cutting machine can punch holes on leather, cardboard, PVC, rubber, carpet, mat, etc.

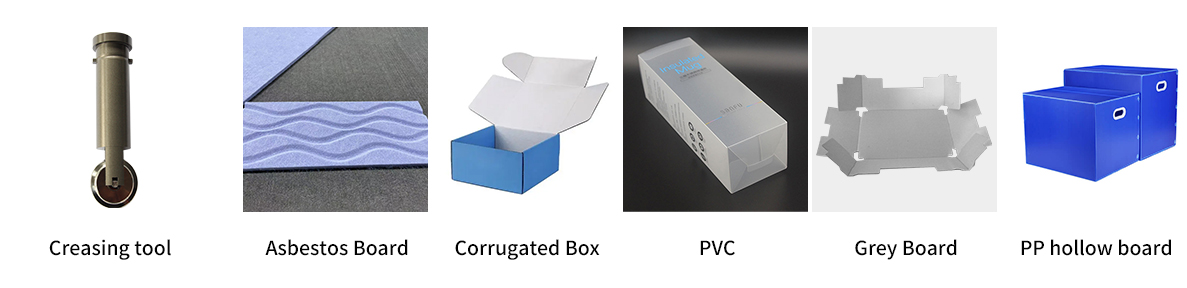

Modules & Tools

Yitai cardboard cutting machine is equipped with advanced, standard and universal tool modules for replacing tools easily and quickly. With the tool quick change module, our corrugated cardboard cutting machine can quickly realize full cutting, half cutting, grooving, creasing, v-cutting, engraving, marking and etc. the operation is simple and convenient, it can meet the customized needs of users.

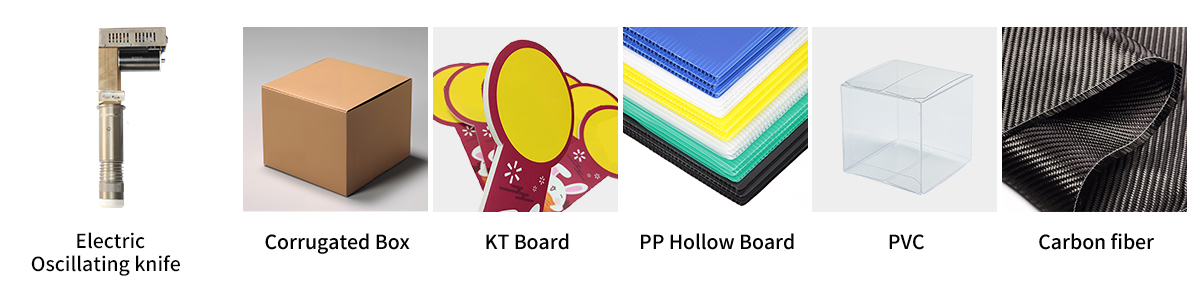

We have Electric oscillating tool, pneumatic oscillating tool, wheel cut tool, milling router, multi-angle V-cut tool, creasing tool, drag tool, etc.




Services from Yitai oscillating knife cutting machine

1.Machine life free maintenance.

2. Professional engineer team 24 hours services support, if you have any questions during using the machine, you can ask in anytime.

3. If you are agent, we can support OEM services. Looking forward to cooperating with agents all over the world.

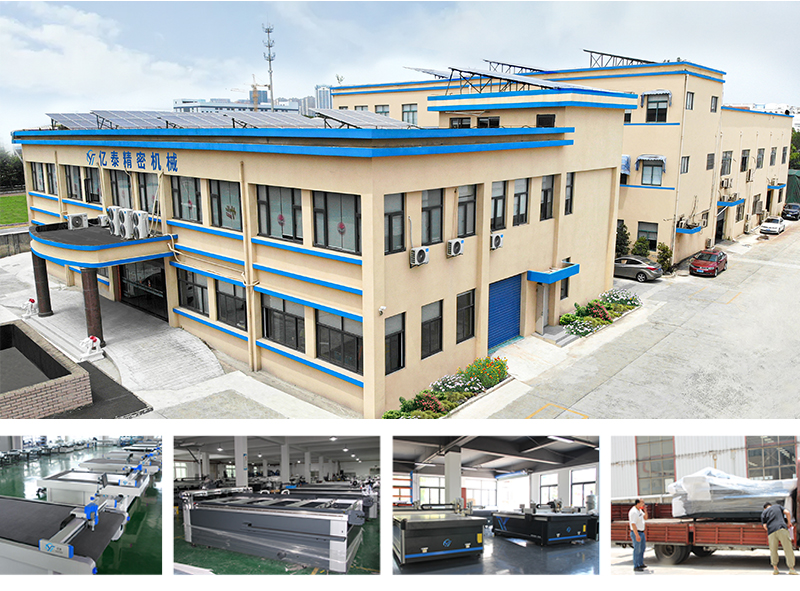

About YITAI CNC Knife Cutting Machine Factory

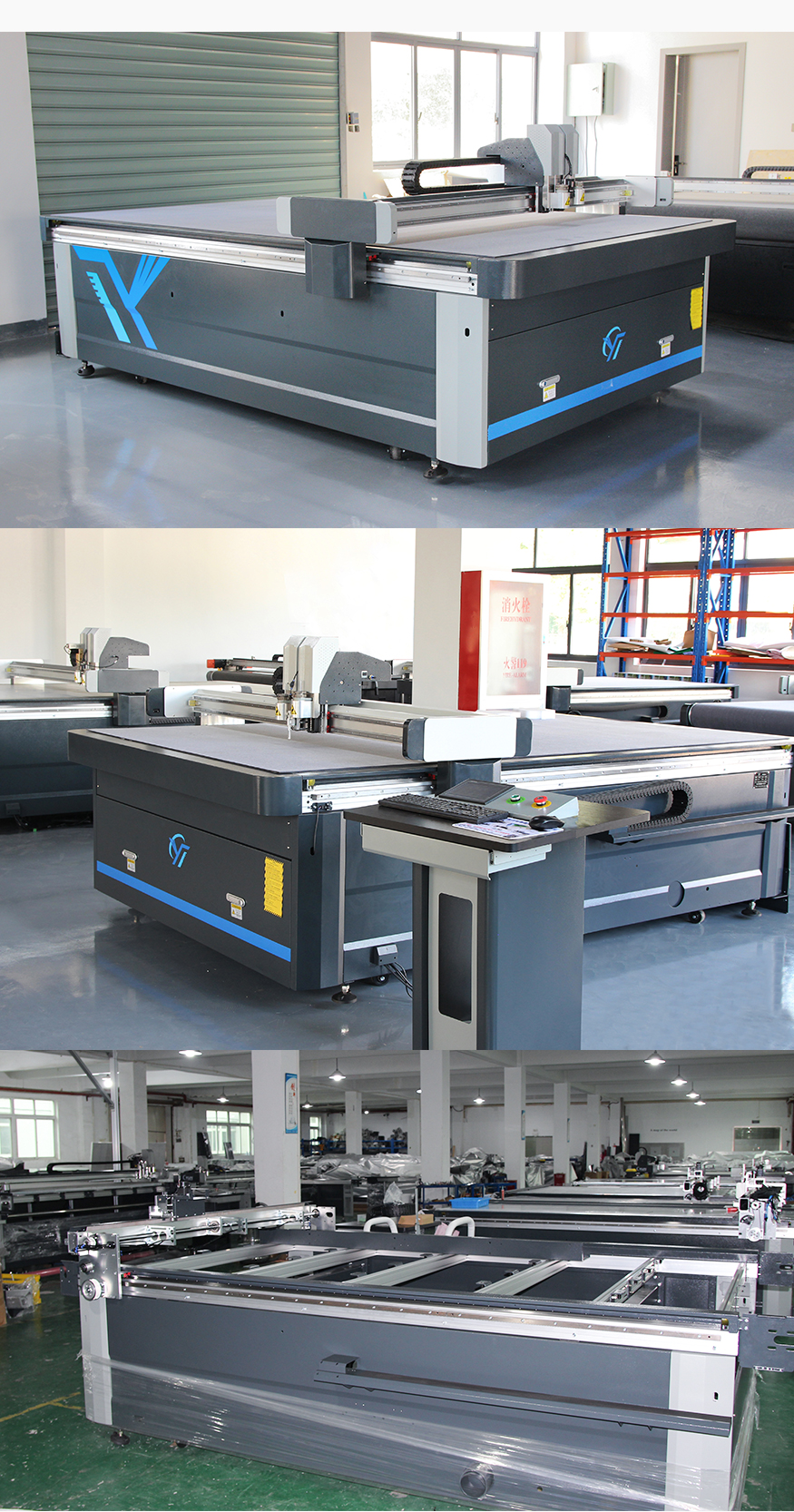

Yitai has been professionally in manufacturing oscillating knife cutting machine since 2003. We have an independent factory, which can fully realize the design, production, sales, delivery and after-sales service processes. and has 12 overseas regional agents in the world, With over 10000 global clients and 8 global agency partners, our products have been exported to North America,South Asia,Australia,South America,Africa and other regions in overseas. Over the past 20 years, we have grown together with partners from over 100 countries worldwide. Our professional after-sales team provides 24-hour online service, ensuring that customers have no worries after purchase.



1. We offer 1 years warranty for the cutting machine. Main parts are free of charge.

2. Technical support by phone, email, or WhatsApp / Skype around the clock.

3. Friendly English version manual and operation videos.

4. Engineer available to service machinery overseas.

5. We have CE, ISO, and FDA certifications.

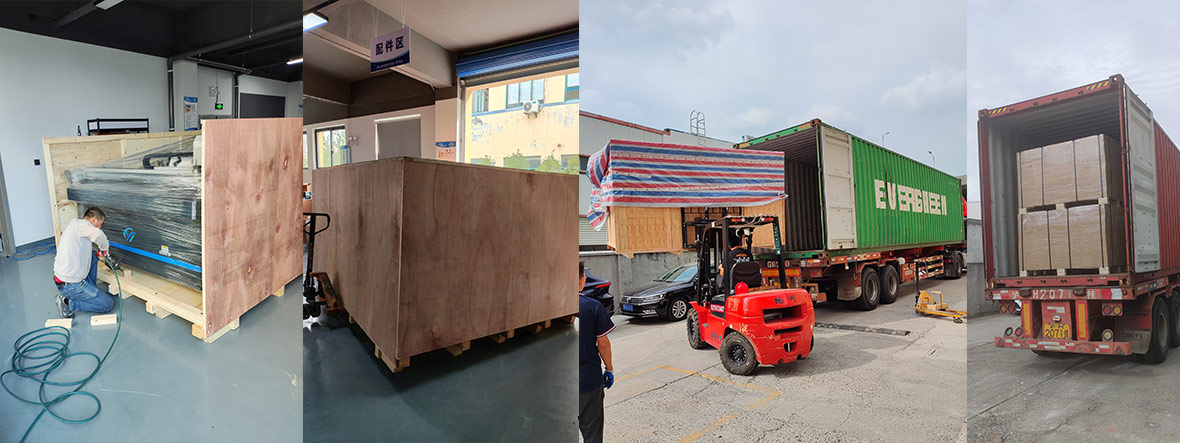

Machine packing and shipment




FAQ

Q1: How to choose the right carton box cutting machine?

A: Please provide us some info, then we can recommend you the suitable machine:

1)What materials are going to cut?

2)What's the largest size of original materials?

3)What's the thickness of materials?



Q2: Can you design a machine for me depending on my requirements?

A: Of course, we will discuss details with you and give you our professional suggestion for the machine ensure the machine could match all your requests with best cost performance.



Q3: What should I do if the machine has any problem in future?

A: We supply online technical support and door to door service. Anything confuse you, just contact us.



Q4: What's the warranty policy?

A: Standard warranty is 12 months upon delivery.

Main parts are free of charge(except consumable parts) when problems happened because of quality problem during this period. Problems caused by wrong operate will also well-solved.



Q: Can I still get support after warranty?

A5: Of course, YITAI offers life-time technology support, you can always counting on YITAI service.



Q: This is the first time I use this kind of machine, Is the carton box digital die cutter easy to use?

A: Our machine is very user-friendly, and generally speaking, it takes a very short time to master the operation. We will provide training service.



Q: Where is your factory located? How can I get there?

A: Our factory is in kunshan, jiangsu province,China. You can fly to shanghai,  We can pick you up at the air station.
